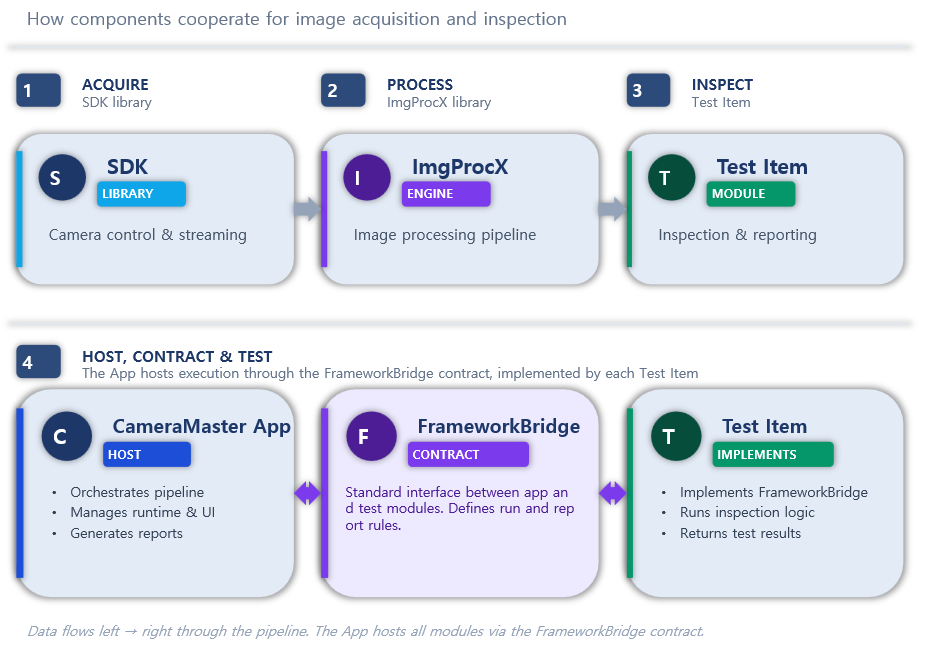

CameraMaster Framework

CameraMaster Application

• Main executable application for image acquisition and inspection
• Renders captured video streams in real-time
• Executes test items for automated image analysis and validation
• Generates inspection reports and logs based on test results

ImgProcX library

• High-performance image processing library
• Provides functions for image format conversion (e.g., demosaicing raw Bayer images)
• Optimized for parallel execution to enhance high-speed
• Utilizes GPU acceleration for high-speed processing of large image data

SDK library

• Provides a API for control of the image grabber
• Supports image sensor initialization, register configuration, and real-time image capture

FrameworkBridge library

• Core interface library for test item development
• Defines standardized communication protocols between the application and test modules
• Enables test item integration and lifecycle management within the main application

Test Item

• User-implementable inspection module based on ‘FrameworkBridge’
• Acquires image data from the grabber for custom analysis
• Performs algorithmic evaluation on captured frames (e.g., defect detection, measurement, etc.)
• Communicates inspection results back to the main application for display and report generation

class FRAMEWORKBRIDGECLASS CInspectionItem
{
    friend class CInspectionItemImpl;
public:

    CInspectionItem(LPCTSTR lpszName,
                    MIG::INSPECTION_TYPE type,
                    MIG::INSPECTION_METHOD method,
                    int nParaNo,
                    int nBoardId);

    virtual ~CInspectionItem();

private:
    CInspectionItemImpl*    m_pInspectionItemImpl = nullptr;

protected:
    virtual BOOL    PreInitialize();

    virtual BOOL    PreInspect();

    virtual void    PostInspect();

    virtual BOOL    Inspect()   = 0;

    HWND    SetOptionDialog(HWND hWnd);
    HWND    SetResultDialog(HWND hWnd);

    void    SetInspectionMethod(MIG::INSPECTION_METHOD method);

public:
    BOOL    InitTest();
    BOOL    PreTest();
    void    PostTest();

    int     Test();

    BOOL    Abort(BOOL bResult, ULONG ulTimeout = 1000); // do not call in item. it could be deadlock.

    BOOL    IsAbort() const;

    BOOL    IsTesting() const;

    int     GetParaNo(void) const;
    void    SetParaNo(int nIndexParaNo);

    void    SetName(LPCTSTR lpszName);
    LPCTSTR GetName(void) const;

    MIG::INSPECTION_TYPE        GetInspectionType(void) const;
    MIG::INSPECTION_METHOD      GetInspectionMethod(void) const;

    LPCSYSTEMTIME   GetStartedTime() const;

    void    EnableInspection(BOOL bEnable = TRUE);
    BOOL    IsEnabled() const;

    virtual BOOL    SaveOptions();
    virtual BOOL    LoadOptions();

    const HWND  GetOptionDialog() const;
    const HWND  GetResultDialog() const;


    int     GetResultBinCode(void) const;
    LPCTSTR GetResultBinCodeName(void) const;
    void    SetResultBinCode(int nBinCode, LPCTSTR lpszName);

    int     GetBoardId(void) const;

    void    SetLiveItemCaptureTimeout(DWORD dwTimeout_ms);
};
